Save cost for general machining process
New Century

Competitive price with excellent sharpness on steel.

Anti-vibrated 4 flute:4NV-
3 flute:3NC-
2 flute:2NC-
2 flute ball endmill:2NCB-
Anti-vibrated roughing endmill:RFNV-

Anti-vibrated by variable pitch and leads.Good performance with competitive price.

Save tool cost

Price comparison : company A is taken as 100.
*Company C endmill is low cost type.

Test data

Workpiece material: S50C
Tool: 4NV-10-25 (Φ10 x 4 flute)
Cutting condition:
1) Slotting: ap=10mm, ae=10mm, V=80m/min, S=2,546rpm, F=390mm/min, fz=0.038mm
2) Side milling: ap=5mm, ae=3mm, V=140m/min, S=4,456rpm, F=890mm/min, fz=0.05mm
Test result: No vibration, excellent chip control and smooth surface!

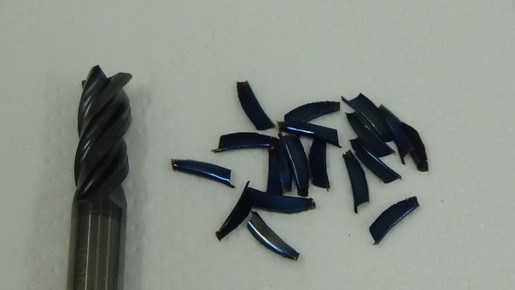

  • Chips condition

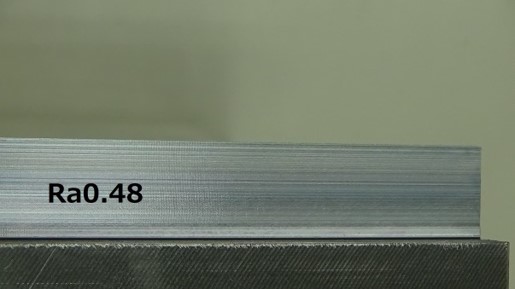

  • Surface roughness


Machining video

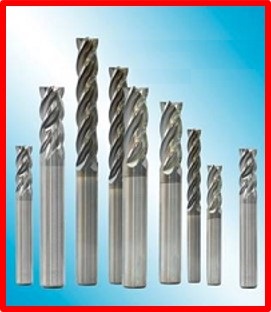

YG endmill series

  • For General Steels

  • For Stainless Steels
    V7 PLUS

  • For Heat Resistant Alloys
    Titanox Power

  • For Pre-Hardened Steels (HRC40~55)(HRC40~55)
    4G MILLS

  • For High Hardened Steels (HRC50~70)

  • For Aluminum, Non-ferrous Metals

Appealing sales points
  • Save cost for general machining process

    Save tool cost with good performance.

  • Wide lineup from Φ1~Φ25

    We have following items as standard inventory.
    2 flute: Φ1~Φ12 (Φ0.1 each)
    4 flute: 1.5D, 3D, 4D, 5D

  •  Wide applications

    for stainless, roughing, ball endmill, HSS.

edited by masashi shinki
