PENTA CUT for Swiss type automatic lathes

This product has a lineup of sizes that can use PENTA CUT even with automatic lathes.

PENTA 17-P-RS/LS

This is able to use PENTA CUT even with automatic lathe with small space.
Here are chips photos for each machining condition from SUS316L workpieces which are difficult to control.

  • Machining video

  • Concept video

    Short head design that allows machining very closely even to the clamping area.

Machining test with SUS316L workpiece.

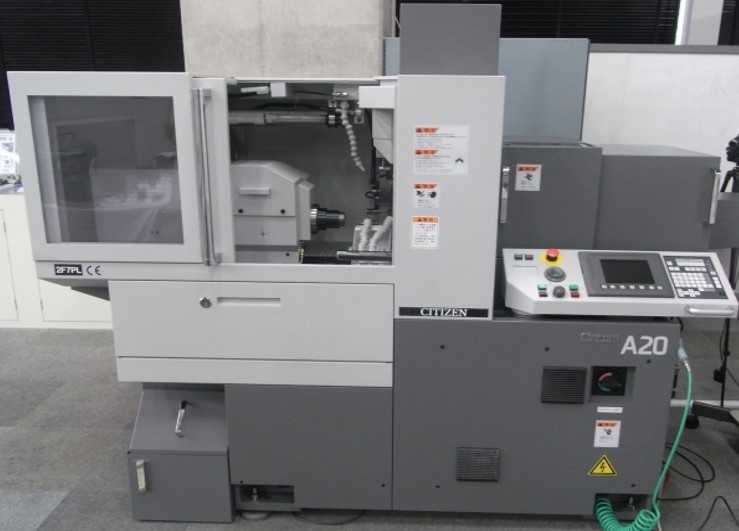

  • Machine

    CITIZEN MACHINARY
    cincom A20　Cutting oil, external coolant

  • Cutting condition

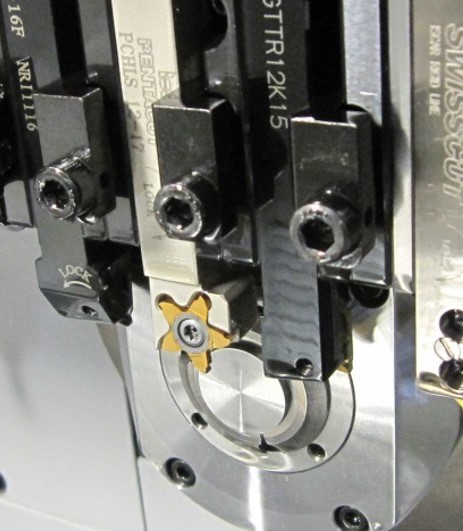

    Insert:PENTA 17N200P010LS IC1008
    Holder:PCHLS 12-17 (12 x 17 mm type)

Chips condition for each cutting condition　*Insert width: 2.5mm

Recommended cutting condition

Please refer Iscar web site for more detail.

PENTA CUT inserts：
https://www.iscar.com/eCatalog/Family.aspx?fnum=4215&mapp=TG&app=0&pageType=4&rel=I
PENTA CUT holders：
https://www.iscar.com/eCatalog/Family.aspx?fnum=4215&mapp=TG&app=0&GFSTYP=M&fr=1
This product will satisfy your needs of:

  • Saving cost

    Five cutting edges that provide the most advantageous price per cutting edge.

  • Rigid clamping system

    A strong insert design enables machining at very high machining parameters.

  • Easy insert changing

    Easy tool changing and reduce machine stop time.

  • Also threading

    This series also has the threading applications.

edited by　yuki takashima
